LEDVANCE First Generation PHASE EV™ Commercial Charger
July 14, 2026
The LEDVANCE PHASE EV™ Charger is the ultimate solution for fast and efficient EV charging. Plus, with an industry-leading 5-yar warranty included, you can be confident in your investment for years to come.
WHY LEDVANCE PHASE EV™
main product highlights
The PHASE EV is the ideal solution for electric vehicle owners looking for a reliable and convenient way to charge their cars. With its rugged hardware, smart software, and advanced features, this charging station is a game-changer in the EV industry. The NEMA 4 enclosure certified for indoor and outdoor use, IK08 impact protection, and IP66 ingress protection make the PHASE EV one of the toughest chargers on the market. No matter where you install it, you can trust it to perform reliably and safely, ensuring your vehicle is charged and ready to go when you are.

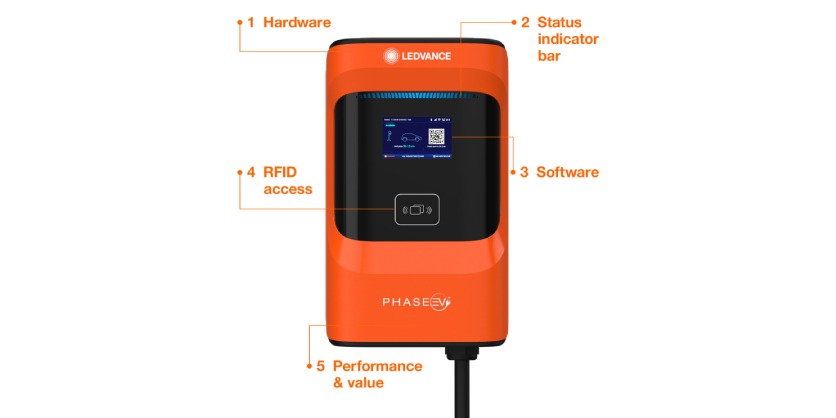

Product highlights
1. HARDWARE
Rugged NEMA 4 enclosure certified for indoor and outdoor use
- IK08 impact protection
- IP66 ingress protection
2. STATUS INDICATOR BAR
Color changing bar shows status of the PHASE EV
- Greeen – Available for Charging
- Blue – Charging/In Operation
- Purple – Charging Complete
- Red – Service Needed
3. SOFTWARE
AmpUp Community Manager offers advanced yet easy-touse tools that help set up and manage your station(s)
4. RFID ACCESS
RFID allows for flexible, personalized charging options
5. PERFORMANCE & VALUE
Affordably priced L2 Charger offers fast charging through powerful software
Specifications
FEATURES AND FUNCTIONS
| Cable length | SAE J1772 (Type 1 connector) |
| Display | 4.3in LCD w/charging status light bar |
| Cable length | 25ft |
| Display | 4.3in LCD w/charging status light bar |
COMMUNICATION
| Interfaces | Ethernet, 4G, Wi-Fi |
| SIM card | SIM card slot – 4G SIM Card (AmpUp, shipped installed) |
| User authentication | RFID, QR code, App |
| Back-end protocol | OCPP 1.6, upgradeable to OCPP 2.0.1 |
| Software upgrade | Over-the-air (OTA) |
| Software provider | AmpUp |
ELECTRICAL DESIGN
| Power supply voltage | AC level 2, 208/240V |
| Rated frequency | 50Hz/60Hz |
| Rated current | Up to 48A – 16/32/40/48 amp selectable |
| Power output | Max 11.5kW |
| Input connection | Hardwired – terminal lug screws |
| Primary wire gauge | 8 AWG |
| Power requirements | 208V single phase/240V single or split phase |
| Metering | Embedded metering +/- 1% accuracy – revenue grade |
| Ground fault protection | Standard |
| Over voltage protection | Standard – 6kV surge suppression |
| Over current protection | Standard |
GENERAL DESIGN
| Environmental rating | NEMA 4 enclosure (UL50E), IK08 impact protection |
| Ingress protection | IP66 |
| Dimensions (H x W x D) | 16.34″ x 9.45″ x 5.59″ (415mm x 240mm x 117mm) |
| Weight | 19.8–22 lbs (9–10kg) |
| Operating temp | -22°F to 122°F (-30°C to 50°C) |
| Storage temp | -40°F to 167°F (-40°C to 75°C) |
| Cooling | Natural cooling – fanless |
| Paint | UV protection |
CERTIFICATIONS AND STANDARDS
| Standards | ETL (UL2594, UL2231, UL1998, UL991) |
| EMC | FCC Part 15 Class B |
| ENERGY STAR® (EVSE v1.1) | Yes |
| Warranty | 5-Year warranty |

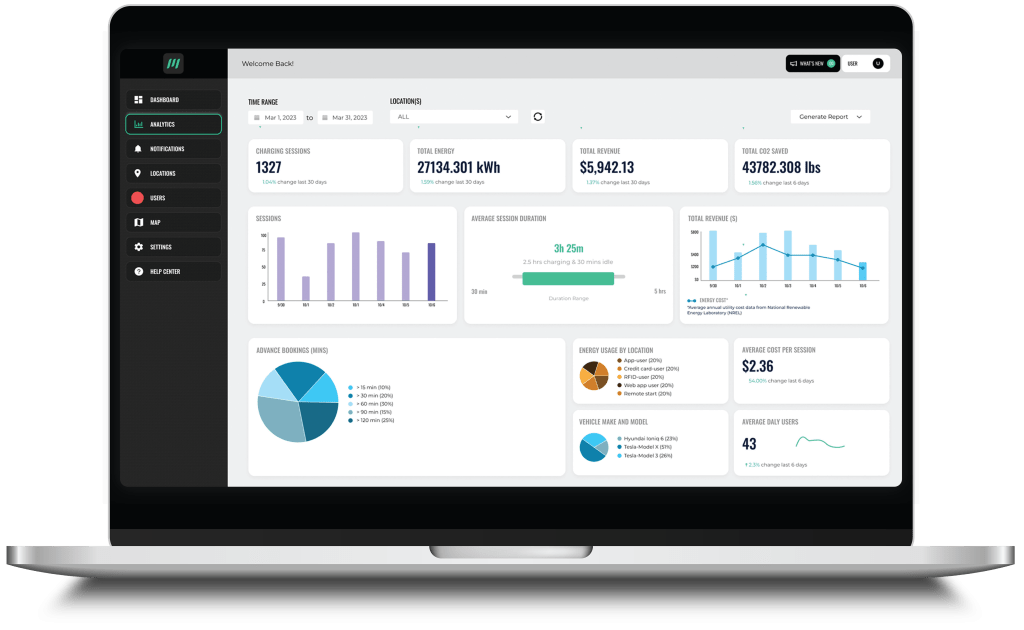

Ampup software for Phase EV™
Empowering Your Business
We’re thrilled to bring you a cutting-edge management solution integrated with Phase EV. AmpUp software revolutionizes the way you handle operations, empowering you with a user-friendly interface and a comprehensive suite of features to streamline your business processes. Let’s delve into the key benefits AmpUp brings to your fingertips.
KEY FEATURES
Our trusted partner AmPup brings you a comprehensive software offering that includes multi-site management, real-time analytics, smart scheduling, advanced access control, and the ability to create user groups. With AmPup’s innovative features, you can optimize your operations and achieve remarkable efficiency.
- Multi-site management
- Real-time analytics
- Smart scheduling
- Advanced access contro
- Create user groups
Benefit from RFID access, effective power load management, automated reporting, and tiered pricing capabilities. Plus, enjoy peace of mind with our 24/7 customer support, ensuring you always have the assistance you need.

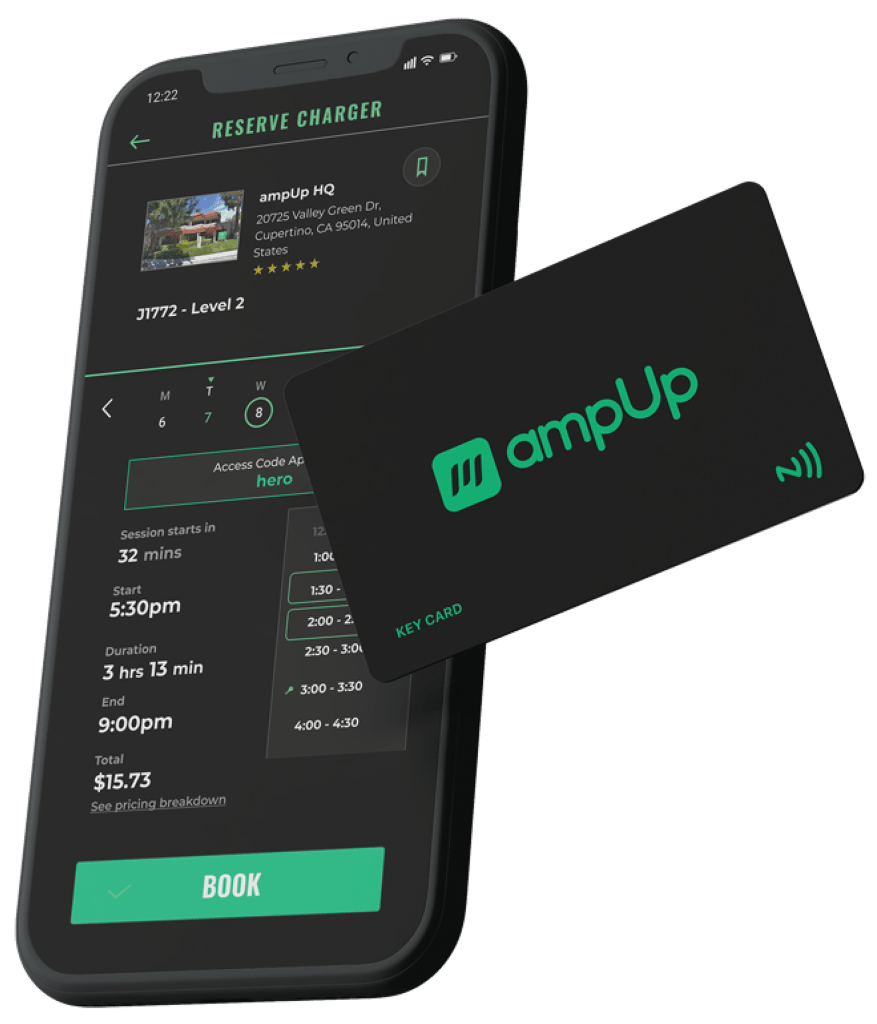

- RFID access
- Power load management
- Automated reporting
- Tiered pricing capability
- 24/7 Customer support
Contact LEDVANCE today to discover how their feature-rich solution can empower your business and drive growth. Together, let’s revolutionize the way you manage your Phase EV operations.
