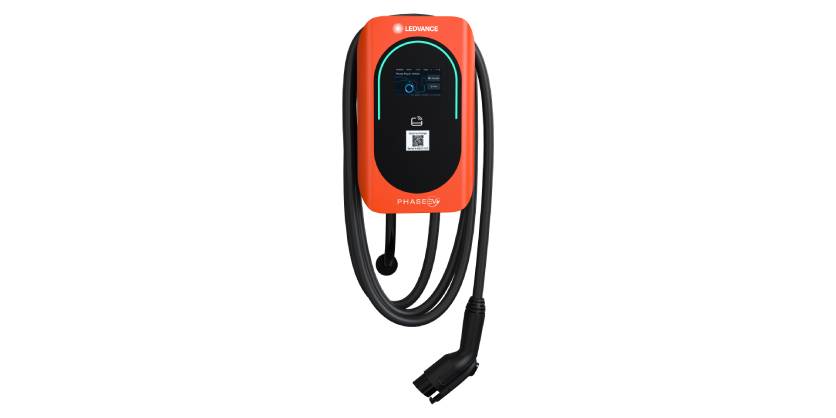

Introducing LEDVANCE’s New Generation 2 Level 2 Commercial Charger
February 23, 2026
Get ready for the next generation of commercial charging – LEDVANCE’s PHASE EV™ Commercial Gen 2 is arriving with faster, smarter, and more flexible features than ever before.
WHY LEDVANCE PHASE EV™
main product highlights
- Higher Power & Efficiency – Max 11.5kW or 19.2kW with selectable amperage up to 48A or 80A
- Universal Compatibility – SAE J1772 Type 1 connector with a 25-ft charge cable
- Advanced Connectivity – WiFi, Ethernet, Bluetooth, RFID, and optional 4G & ISO 15118 for seamless Plug & Charge experience.
- Intuitive User Experience – 4.3” color touch screen, bright LED status bar, and multi-language support (English, French, Spanish).
- Built for All Conditions – NEMA 4, IP65-rated, durable design for extreme environments (-40°C to +50°C).
- Flexible Installation – Wall mount, pedestal options (single, back-to-back, side-by-side), and cable management for every setup.
- Future-Ready Payments – Optional credit card reader (Nyax model) for effortless transactions.
- Designed for fleets, businesses, and public charging networks, PHASE EV™ Gen2 is the ultimate smart charging solution.
- Flexible & Smart – Use as a free plug-and-charge unit or subscribe to ChargeLab’s smart network for remote monitoring, user access control, and revenue tracking.
Product Highlights
1. Hardware
- 48 Amp Level 2 fast charging with 11.5kW maximum power output
- Rugged NEMA 4 and IP65 hardware enclosure, certified for outdoor and indoor use
- IK08 impact protection
- -40°C ~ +50°C operating temperature
- Bottom and Back wiring input options
- Internal L1, L2, and Ground wire terminals provide secure connections
- SAE J1772 Type 1 connector with 25ft charge cable
- Output amperage is selectable to 8/16/24/32/40/48A
- Max 11.5kW @240VAC
- 4.3″ color LCD touch screen with options for English, French and Spanish languages
- 25-foot charge cable with SAE J1772 Type1 connector
2. Status Indicator Bar
Color changing bar shows status of the PHASE EV
- Green – Available for Charging
- Blue – Charging/In Operation
- Purple – Charging Complete
- Red – Service Needed
3. Software
- Pre-Configured for use with an optional subscription to ChargeLab Charging Station Management software which offers property owners, fleet managers, and EV station owners a suite of features to control, monitor, and manage your chargers – including revenue collection, real-time analytics, 24/7 customer support, load-balancing management, and firmware updates
- Chargers can be configured for free charging operation without the need for software subscriptions
4. Modular Design
Configurable Communications to meet Customer Needs
- Base Model: Ethernet, WiFi, Bluetooth, and RFID
- 4G Model: Add 4G cellular module
- ISO15118 Option: ISO 15118-2/3 specifies the communication protocol between Electric Vehicles (EV) and the Electric Vehicle Supply Equipment (chargers). EV’s equipped with 15118 capabilities are able to use public charging stations without the need to scan a QR code or RFID, download an App, or enter a credit card.
- Nyax Model: Add Credit Card Reader
5. Easy Installation
- Easy installation with secure wiring terminal blocks and all required hardware for wall mounting
- Available free-standing pendant mounting options include single or double charger mounting, with or without cable management systems
More Information
LEDVANCE Commercial Generation 2 Level 2 Commercial Charger
Explore LEDVANCE’s Resources:
Related Product
LEDVANCE Powers Ahead with PHASE EV Gen 2 Level 2 Commercial Charger
LEDVANCE has announced the launch of its next-generation PHASE EV Gen 2 Level 2 Commercial Charger, delivering a major leap forward in performance, connectivity, and installation flexibility for businesses expanding their EV infrastructure.
Designed to meet the real-world needs of property managers, electrical contractors, and fleet operators, the PHASE EV Gen 2 delivers up to 48 amps of charging power (11.5 kW) and introduces modular smart features, multilingual touchscreen controls, and broad compatibility with open network management platforms. An 80-amp version is expected later this year.
